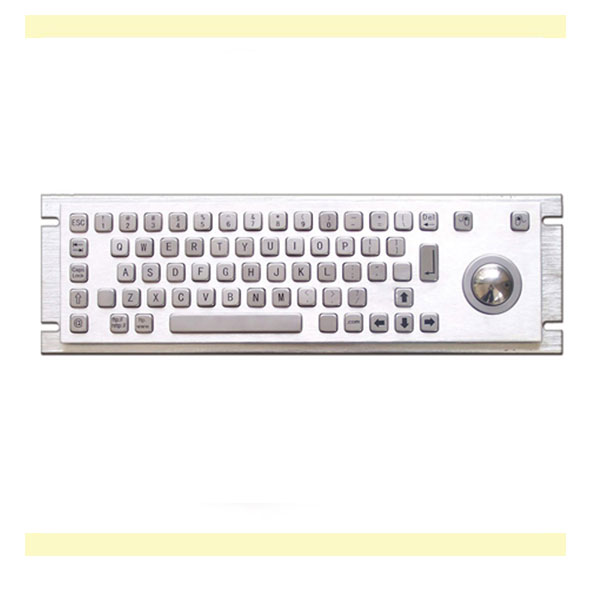

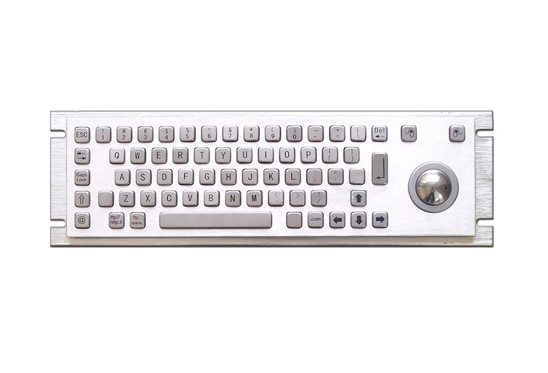

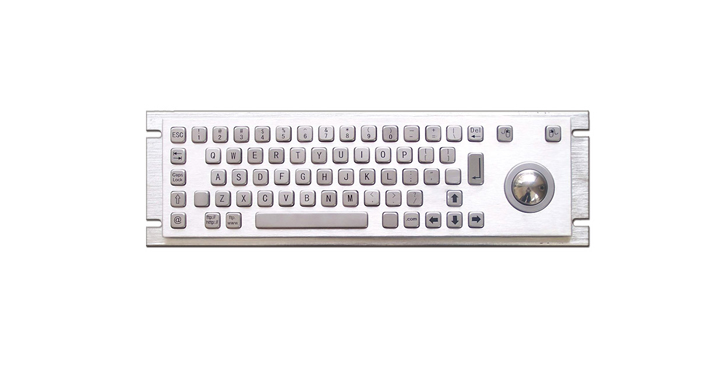

Metal keyboard with trackball

 Metal keyboard with trackball

All Languages customizable.




   Specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, IP 65 protect class, it has good performance of water proof, dust proof and vandalism proof, which make it a good choice for public use or harsh environment.


 Silicone switching elements, good tactile feedback


 Friendly layout and any language is available and it’s free of additional charge




       68 KEYS

          Material: stainless steel (front panel) and alumina alloy (scale board)

         Key travel:  1.5mm

         key switch lifespan: more than 10 million of operations.

        Key switch technology: silicone switching

       Key graphics: laser engraved legends & characters in durable paint

       Mounting style: rack mount

       G.W.: 1.4 KGs

       Dimensions: 330*100mm(front panel)

       Supply Voltage: +5V DC +/-5%

       Communication interface: USB or PS2 (optional)

       Protection Level: IP65(front panel)

      Operating temperature:-40℃ ~+70℃

      Storage temperature: -50℃ ~ +80 ℃

      CE 、FCC、RoHS Compliant

     OS support:DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7, Linux, Mac,etc

     MTBF >50000H

     MTTR <30min




This Keyboard is mainly use for unattended internet terminals and information kiosks in public areas, self-service terminals in bank, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones,  industrial console, etc
