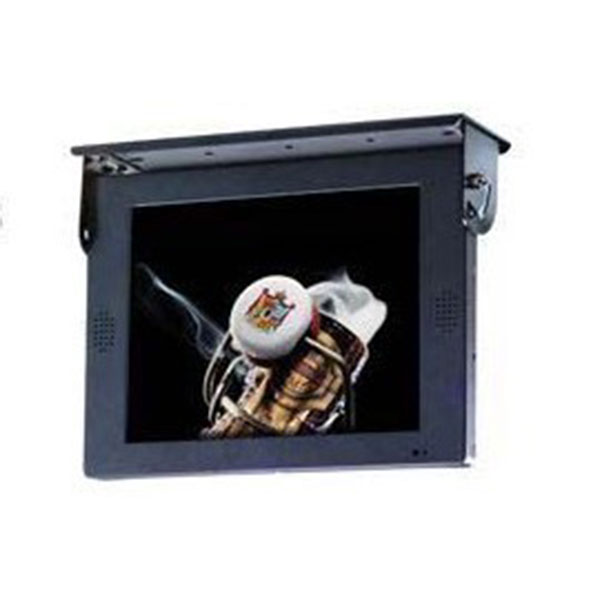

PI2014

 15" digitial signage

bus or taxi digital signage

Key Function:

A  Specially designed for bus usage with extra technical enhancement

B  Update contents simply with an USB drive

C  Auto play and replay, Timer function (auto power on/off)



Main features:

1. Built-in 15" (4:3) TFT LCD screen

2. Metal housing, with tempered glass covering the LCD screen. The angles of inclination can be adjusted as per users’ special need

3. Suitable for DC 12-24V use, long time playing and replaying for inner bus advertisement

4. Play from:
   --Compact Flash card (CF card)
   --USB flash drive

5. Update contents of the memory card by simply inserting an USB flash drive, no need to  take out the memory card, no need  to use computer

6. Timer function: the player powers on / off automatically everyday at the time pre-set;  It can also automatically play and non-stop replay within the pre-set time frame

7. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing

8. Theft-protection device effectively prevent the player and CF card from being stolen in public place

9. Audio output: 2  built-in high quality stereo speakers

10. Professional mounting kits (ceiling mount and wall mount) are available.



Technical Specifications

1.  TFT LCD screen:
     Size: 15 inches
     Resolution: 1024 x 768
     Brightness: 250cd/m2
     View angle: left / right 60°,  up 50°,  down 80°
     Contrast: 350 : 1

2.  Compatible file formats:
      Picture formats: BMP/JPEG
      Audio formats: MP3/WMA
      Video formats: MPEG1(VCD), MPEG4

3.  Play from:
     Memory flash: CF Card
     USB: high speed USB 2.0  (Host & OTG)

4.  Output:
      Built-in loudspeaker power : 2 × 2W

5.  Others:
    Casing material: metal
    Installation: Ceiling mount /elevation wall mount
    Power supply:  DC12V—DC24V   36W
    Dimension(mm): 450(L)×300(W)×60(H)
    net weight: app.5.6kg
    Working temperature: 0℃-40℃
    Storage temperature:-20℃―60℃
