Features

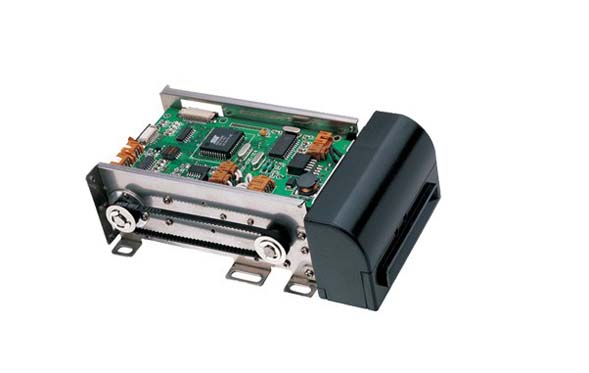

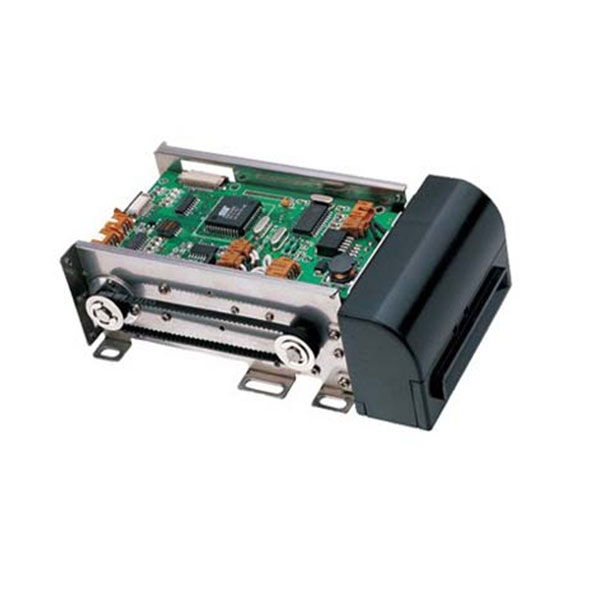

Model	CRT-310
Features	▼ EMV certified
	▼ IC/RFID card read/write, Mag card read only
	▼ SAM slot option, magnetic shutter option
	▼ Insert& eject from both sides
	▼ TTL/RS-232 Interface
	▼ Compact, light, robust
Application	▼ ATM
	▼ Information Kiosk
	▼ Electronic purse
Specification
Card standard	IC Card :ISO7816 Magnetic Card:ISO7810 ID-1,7811 RFID Card:ISO 14443-A(Mifire one)
Weight	Approx. 410g
Life	Magnetic head:500,000 cycles min IC card Contact:300,000 cycles min Rubber wheel:500,000 cycles min Motor:500,000 cycles min
Communication	RS-232/TTL
Power supply	DC 12V +/-5%
Temperature/Humidity	Operation:0~50^oC /0~90%RH(No condensing) Storage: -10~75^oC /0~90%RH(No condensing)
