magnetic card reader

 magnetic card reader

MSR reader

1. USB/RS232/PS2 interface available
2. Bi-direction with one magnetic head read capacity
3. Prefix, suffix, enter, tracks can be choosed to set by free software
4. Reading direction can be detected
5. Stock available, delivery within two days
6. Customization available

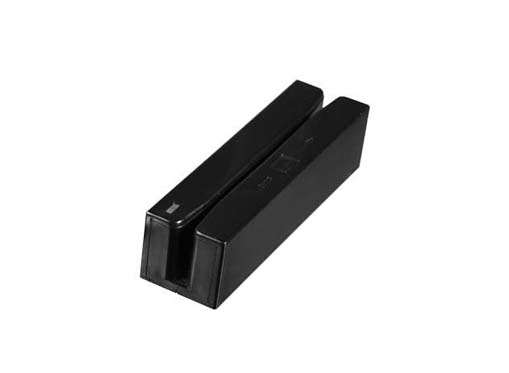

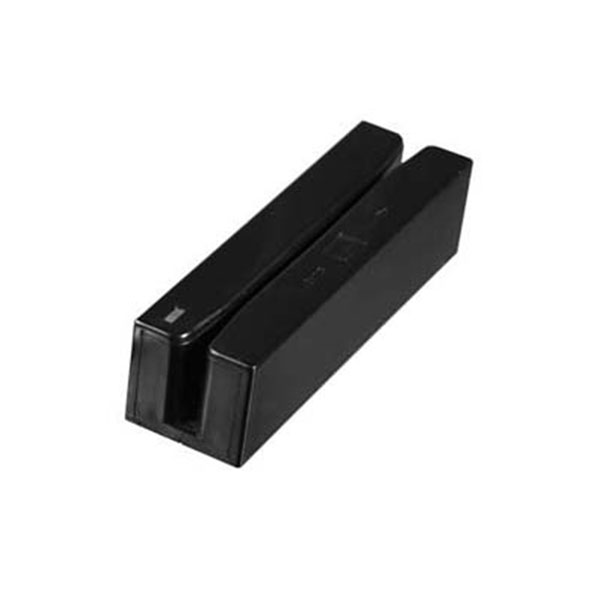

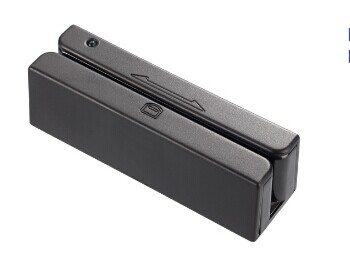

MSR90 90mm mini magnetic card reader is very hot-selling, compact size, high quality and competitive price, attract many domestic and overseas customers, widely applied in bank system, POS system, access control and other applications.
90mm Mini Magnetic Card Reader MSR90 Features:
ISO7811/2, AAMVA, CADMV standard cards supported
Low power consuption
Compact size, nice design
Bi-directional swiping
Single track/dual tracks/triple tracks read only
Customized interface
Specifications for MSR90 90mm Mini Magnetic Card Reader:
Interface RS232/PS2/USB
Decoder F/2F
Operation speed 15-120 cm/sec (6-50inch/sec)
Operation place Indoor
Identify efficiency Above 99.5%
Error rate Less than 0.5%(JSE test card)
Head life At least 500,000 times
Card standard ISO 7811/2, AAMVA
Track location ISO1 (IATA), ISO2 (ABA), ISO3 (MINTS)
Recording density 210 BPI, 75 BPI, 210 BPI
Record character 79, 40, 107
Card thickness 0.76 ± 0.08 mm
Track width 1.5mm
Voltage +5 V DC ± 5%
Current 65mA (max)


Operate temperature and humidity -20°C~70°C, 20~90% RH
Storage temperature and humidity -30°C~70°C, Less than 95% RH
Physical characteristics
Dimension 90mm * 27mm *28mm

90mm Mini Magnetic Card Reader Applications:
POS terminal
Bank system
Access control
Time attendance
Membership system
