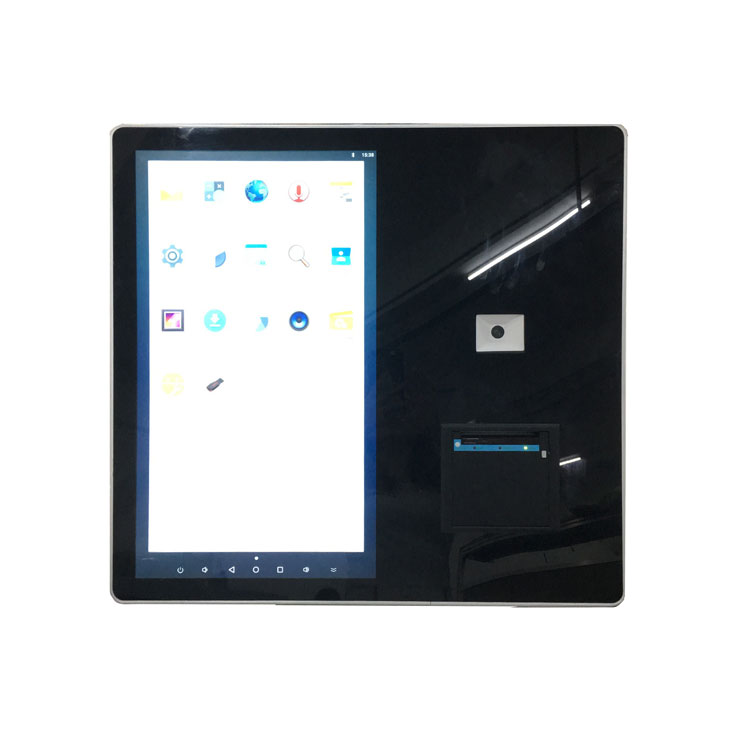

PI1068

1. 21.5" display

2. RK3288 CPU, 2G ram, 16G emmc

3. With printer and barcode reader





System CPU Rockchip RK3288 quad core processor, clocked 2.0G
RAM 2GB
Internal memory  16GB
Operation System Android 7.0
Touch screen Touch Screen 10-Point capacitive touch
Display Panel Full HD 21.5"LCD panel
Resolution 1920*1080
Active area 476.6(L)x268.1mm(W)
Viewing angle 178/178/178/178(L/R/U/D)
Contrast ratio 1000:01:00
Luminance 350cdm2
Aspect Ratio 16:09
Network WiFi 802.11b/g/n
3G dongle 3G USB dongle(optional)
Ethernet 10M/100M Ethernet
Blue-tooth Blue-tooth 4.0(optional)
Interface Card slot SD,Support up to 32GB
USB Device  Mini USB OTG
USB Hostx3 USB Host 2.0
Power Jack  110-220power jack
RJ45 10M/100M ethernet
HD-MI  HD-MI output
Media plays Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K
Audio format MP3/WMA/AAC etc.
Photo jpeg
Other Wall mounting bracket 100mm*100mm wall mounting
Speaker 2*2W
Camera 2.0M/P,Front camera(optional)
Language Multi-language
Working temp 0--50 degree
Accessories Cable Power cable for different countries
Barcode reader 1D&2D barcodes readable
Card reader ID or IC contactless card reader(optional)
Printer Front maintainance 58mm printer
