Set the body temperature threshold, through the associated access control, do not open the door and push the alarm when someone is exceeding the threshold.
By comparison with the face photo database, recognize visitors who are in the whitelist, blacklist or a stranger; both can do face recognition, and also check for wear masks
For abnormal body temperature, no mask, stranger or blacklisted person, push alarm to mobile APP
The device itself has a voice broadcast capability, and issues a voice reminder according to a preset result
Combined with face recognition function, it can be used to check
in and out of work attendance for employees of enterprises and institutions
Can connect external voice broadcast equipment, display equipment and alarm equipment
.png)

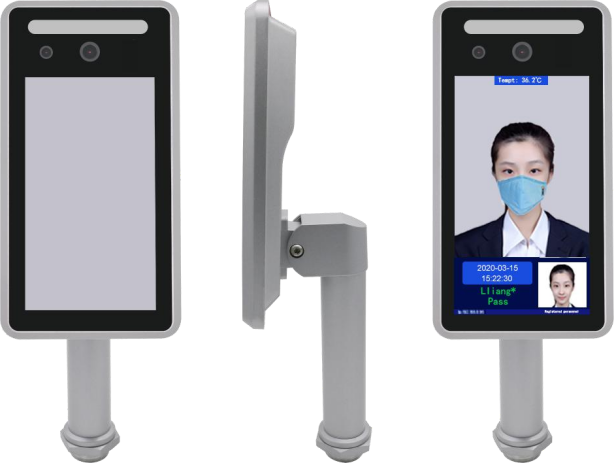

AI Face Recognition & Body Temperature Measurement Access Control Terminal is a complete epidemic prevention solution that integrates AI face recognition, body temperature measurement,mask recognition, access control and attendance capabilities. The site undertakes efficient temperature detection, identification and traffic management, effectively reducing the pressure on epidemic prevention and control, and also human resource costs.
During the epidemic, entrances and exits in public places basically use manual close-inquiries, manual body temperature measurement, manual registration, and personal mobile phone declarations as methods to prevent and control the epidemic. This management method requires a large number of staffs,plus, staffs' self-protection standards are not uniform, which is easy to cause cross-infection. In addition, the information of the tested personnel is not comprehensive, and in the event of a new epidemic, there is no good traceability mechanism.
.png)
Set the body temperature threshold, through the associated access control, do not open the door and push the alarm when someone is exceeding the threshold.
By comparison with the face photo database, recognize visitors who are in the whitelist, blacklist or a stranger; both can do face recognition, and also check for wear masks
For abnormal body temperature, no mask, stranger or blacklisted person, push alarm to mobile APP
The device itself has a voice broadcast capability, and issues a voice reminder according to a preset result
Combined with face recognition function, it can be used to check
in and out of work attendance for employees of enterprises and institutions
Can connect external voice broadcast equipment, display equipment and alarm equipment

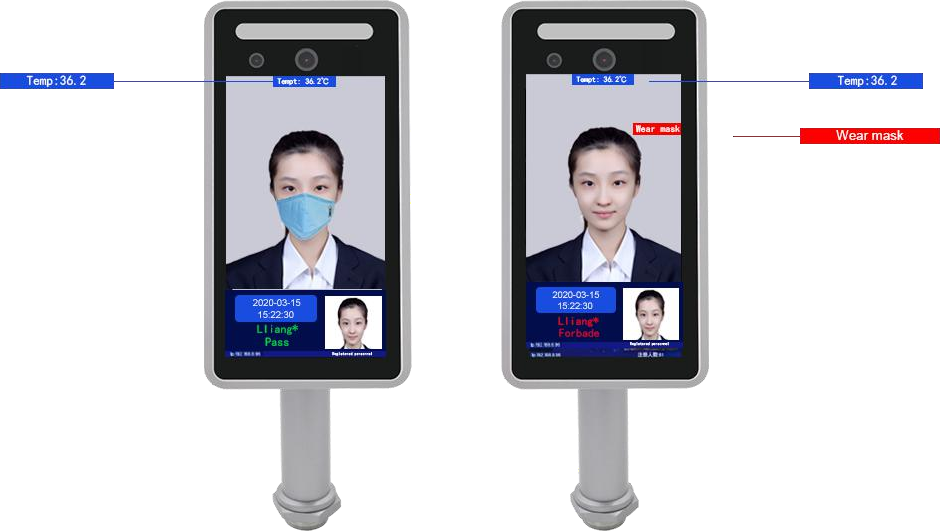

Multi-points, multiple temperature collection,correction algorithm and other technologies are used to measure the body temperature in real time. For the case of exceeding the set threshold, in addition to the screen display text, warning voice and other prompts, it can also push alarms to the user's mobile APP .
.png)

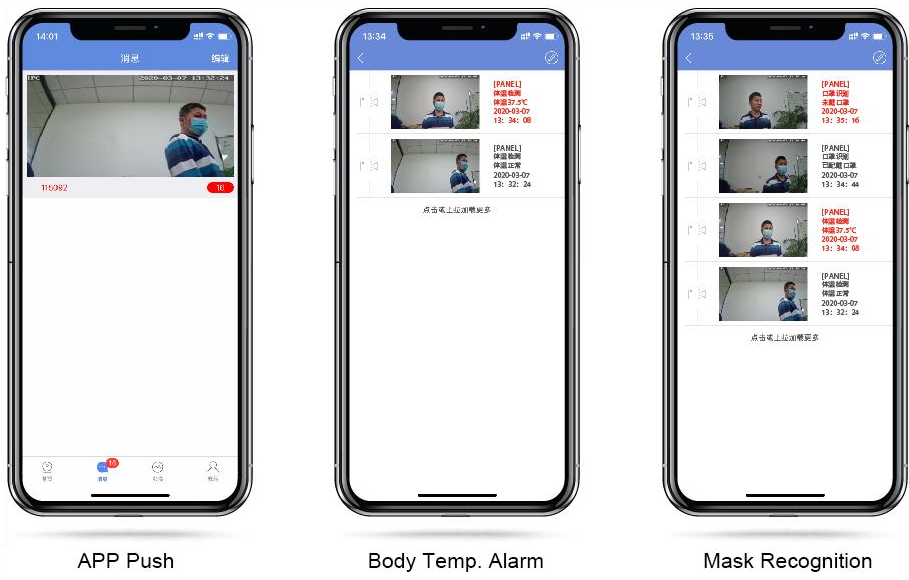

Mobile APP Push
.png)

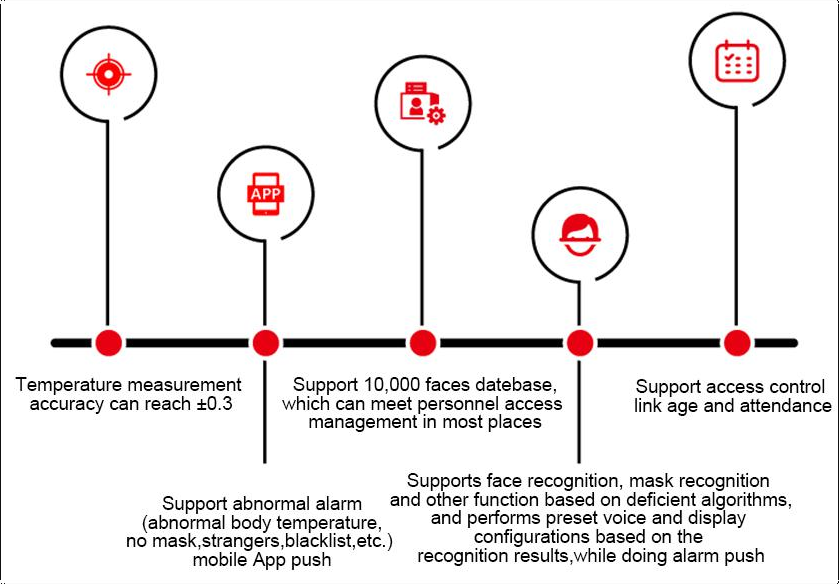

Product Highlights
.png)
Application Scenarios
.png)
AI Face Recognition and Body Temperature measurement Access Control comprehensive solution can be used in residential communities, enterprises and institutions, shopping malls, supermarkets, service industry places, public transportation entrances and other scenarios, and rely on our powerful R & D and technical support team to provide you with suitable solution.
1/ Supports P6S private protocol + ONVIF 2.6 protocol (downward compatible with ONVIF 2.4). Supports web interface, multiple parameters can be configured directly.
2/Supports intelligent body temperature monitoring, real-time display of synchronized temperature data over video; non-contact measurement of body temperature (0.3M--1.2M).
3/Supports AI Face Recognition and Comparison (0.3M-1.5M) based on Face++ AI algorithm, uses the recognition result to control the door opening action or prompt the voice alarm; support Wiggins protocol.
4/Supports mask recognition, use Face++ AI algorithm to accurately identify whether wearing a mask, and prompt voice announcements
5/synchronously. The recognition accuracy rate reaches 98%.
5/Supports configure network by RJ45 ; supports external RS485,alarm I/O output, etc.
6/Supports stand-alone system for face recognition, mask recognition, intelligent temperature monitoring display and voice prompts.
7/Portrait database capacity is 10,000 faces.
8/Abnormal body temperature triggers display alarm/voice alarm/mobile APP alarm.
.png)
Product Specification :
|
Model |
2MP Face recognize+temperature detection 8inch smart camera |
||
|
W810 |
|||
|
Display |
7 inch LCD |
||
|
Thermal |
Sensor |
Thermal imaging infrared temperature sensor |
|
|
Temperature measurement |
Range：35~42℃， Precision： ±0.3℃ |
||
|
Detect distance |
0.4m~0.7m |
||
|
Visible param eters |
Lens |
focal length 1.8mm， Field of View：118° |
|
|
Mini illum |
0.01Lux@F1.2 color mode |
||
|
Dynamic Range |
≥100dB |
||
|
S/N Ratio |
≥43dB（AGC OFF） |
||
|
Exposure mode |
Program mode (customizable shutter interval), shutter mode（1/5 - 1/20,000s）support for slow shutter |
||
|
White balance |
Auto, indoor, outdoor, sodium lamp mode, manual |
||
|
Digital noise reduction |
Support DNR,3DNR |
||
|
Day and night mode |
Fixed color |
||
|
Image and compr ession |
Video compression |
H.265 Main Profile / H.264 High profile / M-JPEG |
|
|
Max resolution |
1920x1080@30fps |
||
|
Resolu tion |
Main stream |
1920x1080、1280x960、1280x720、720x576 |
|
|
Substream |
640x480、352x288、320x240、176x144 |
||
|
MJPEG |
1920x1080、1280x720、closed |
||
|
Output bit rate |
（CBR or VBR), Bitstream setting range：32Kbps~10Mbps |
||
|
Audio compression |
G711，PCM |
||
|
Character overlay |
Support channel name, date and time overlay, adjustable overlay position; |
||
|
AI |
Number of face bases |
50,000 sheets |
|
|
Recognition speed |
|||
