Home > Mini pc M001

M001

 1. Aluminium case, fanless design

2.  Intel celeron  J1900 CPU
3. Support dual display  VGA+ HDMI
4. Support windows 7/8/10, linux OS
5. Support 1*MSATA, 1*2.5" HDD



M001-J1900 starndard

Features 1. Aluminium case, fanless design
2.  Intel celeron  J1900 CPU
3. Support dual display  VGA+ HDMI
4. Support windows 7/8/10, linux OS
5. Support 1*MSATA, 1*2.5" HDD
Specifications
CPU  Intel  Celeron J1900 QUAD CORE CPU, 2.0-2.41Ghz , 2MB cache
SSD 64G  SSD   ,    1*MSATA3.0 ,1*SATA3.0,Supports both interfaces to be used simultaneously
RAM 2G,        1*DDR3L  1333/1600MHz SODIMM upto 8G
Graphic Integrated Intel HD Core graphics card support 1*HDMI+1*VGA
Sound Card ALC662 6 track HD Audio Codec
WIFI Support 300M, B/G/N 802.1.1
Network card 1*RTL8111 1000MSupport diskless booting, network wake-up

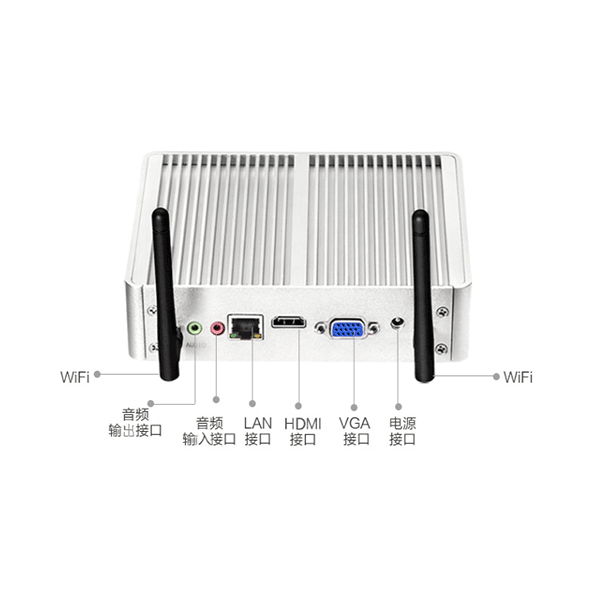

Interface 4*USB 2.0,1*USB3.01*LAN RJ45,1*HDMI,1*VGA,1*POWER
Output 1*VGA, 1*HDMI, VGA and HDMI Support asynchronous or synchronous output
Mini-pcie 1*mini PCIE
OS support win 7/8/8.1/10;wes 7/8;LINUX
Power 12V-4A

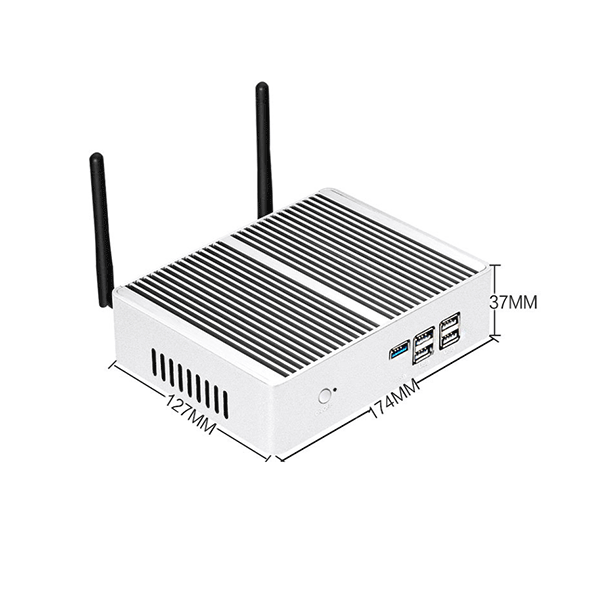

Size 174* 127*37mm
