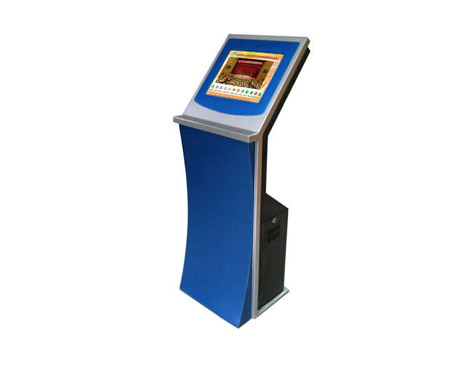

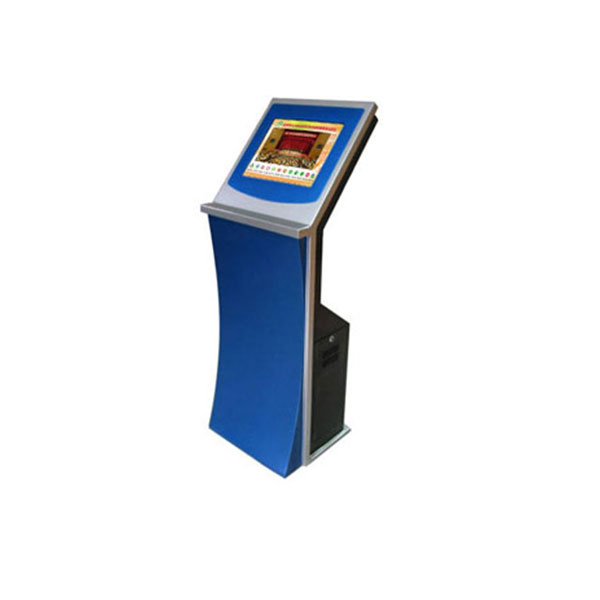

PI1040







Components

Specification

Computer

Industrial Host:   Mother Board : Seavo G41
                               CPU : Intel 3500 2.8G (upgradeable as option)
                               RAM : 1GB(upgradeable as option)
                               HardDisk : 250 G (upgradeable as option)
(More sizes and types of PC available upon request)

Monitor

TFT LCD : 15, 17 or 19 optional
                 : Brightness 300~1200nits
                 : Contrast 450:1~1000:1
Resolution:
15 1024*768
17 1280*1024
19 1280*1024
More sizes between 20"~46" upon request

Touchscreen

SAW Touch : 15 17 19"
                      : Resolution 4096*4096
(More types of touchscreen available: capacitive, resistive or IR optional)

Input Device

3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof

Card Reader

Motorized/Dip :Magcard/IC reader; Shutter(motorized); Confiscate card(motorized)

Printe

Thermal Printer : Width 80mm~210mm; black mark sensor; full/half cutter
Dot Matrix : Width 80mm~210mm; black mark sensor; full/half cutter
Bankbook :24 pin dual direction

Speaker

Multimedia : Left-right bi-channel amplified output

Enclosure

ColdRoll Steel : Steel powdercoated front
                             Powercoated backcover

OS&Drivers

Windows XP+SP2 (WINCE, Linux, Unix, WIN2000) and all related drivers available

Packing

Bubble Foam, carton, wooden case

Other Optionals : UPS, Video Camera, Alarm System, Barcode Scanner,Track Ball, Photo Printer, Cash Acceptor, Card Dispenser, Check Acceptor, Infrared, Bluetooth, PSAM Card, etc.
