PI1006

Face recognition ID card check-in kiosk

Specification

Face recognition

Recognition rate

>99.9%；or when FAR=1% recognition pass rate 98%

Reading speed

1S

Wrong rate

＜0.1%

Recognition distance

<2m

Angle

Up  -20︒+50︒，Side ±80︒

Journal record

Support to record each recognition action

OS supported

Android or Windows

ID card reader

Card type

ISO14443Type

Reading distance

5cm

Response time

＜1秒

Working frequency

13.56mhz

OS

Linux，Windows

Camera

Resolution

200Mega

Kiosk model

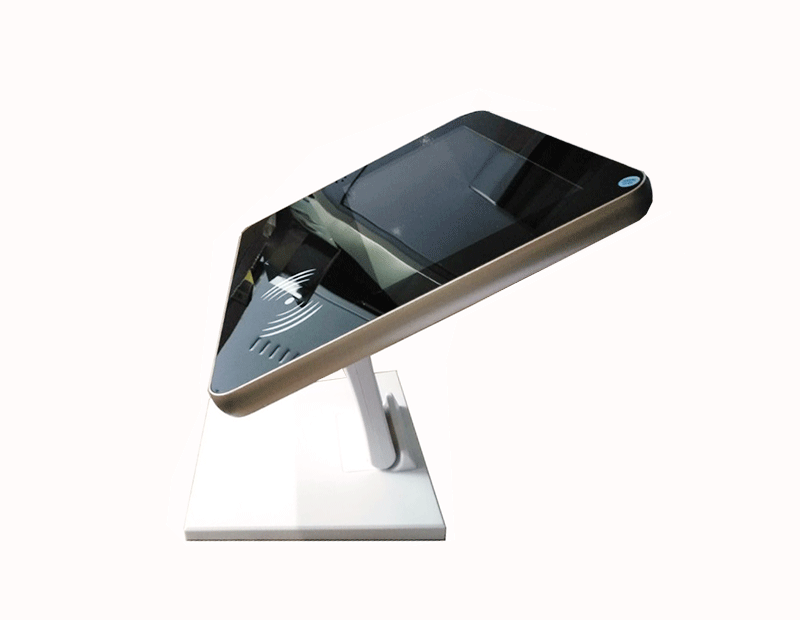

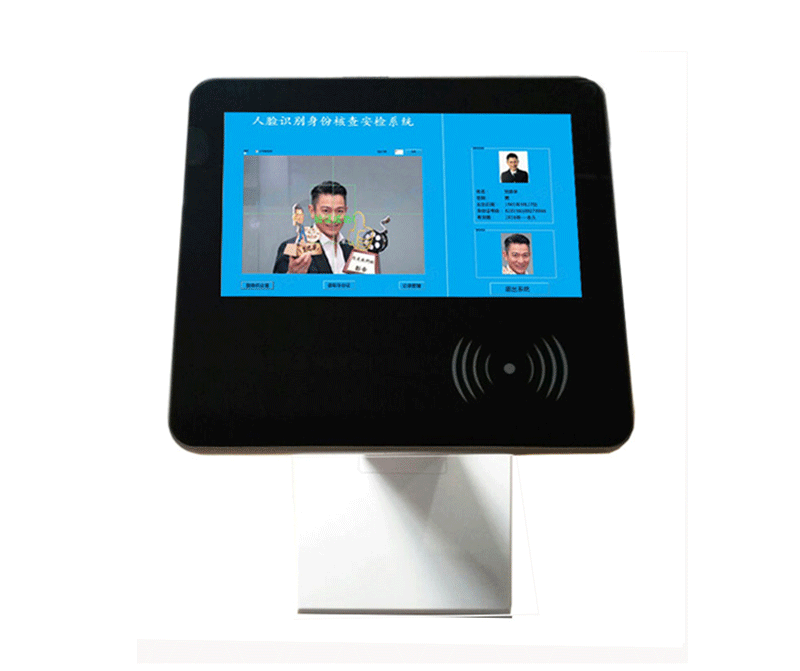

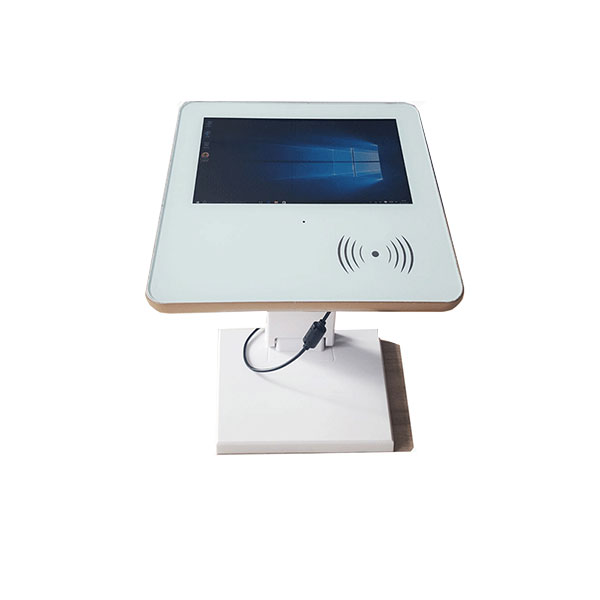

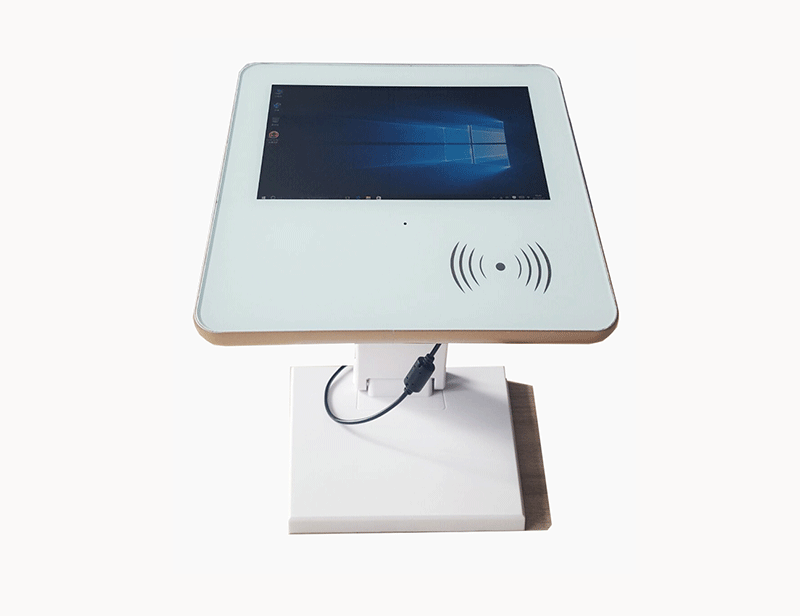

10.1” capactive touch screen face recognition ID check-in system

Touch

Capactive touch（G+G）10points

Color

Black or white

Hardness

Mohs 7 tempered glass surface

Light transmittance

≥95%

Touch material

Finger

Response time

≥3ms

Thickness

6mm

Communiction

Full speed USB2.0/3.0

LCD brand

AOC ( TFT LED IPS A grade)

Touch Life time

Single point over 6 million touches

Viewing area

220mm×124mm

Resolution

1366×800

Contrast

1000:1

Brightness

350cd/㎡

Viewing angle

178︒

Response time

3ms

LCD life time

50000hours up

Frequency

60hz

CPU

Dual core 1.5GHz

OS

Windows 7.Windows 10, Android 5.1.1

Ram

2G

Storage

32G

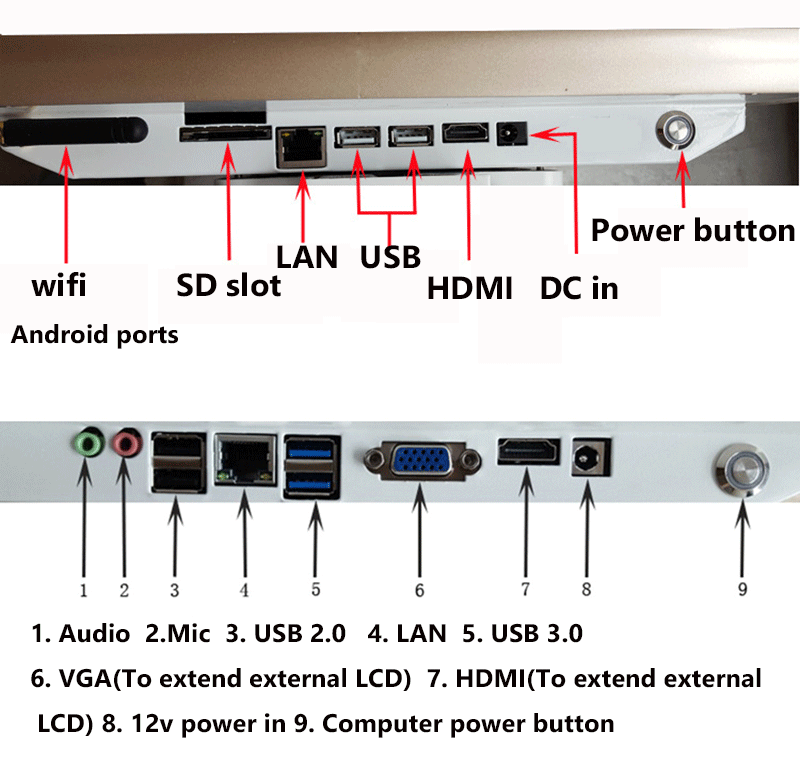

Interface

1 HDMI2.0 support 4K@60HZ

USB2.0

12v DC in

RJ-45

USB3.0

Stereo loud speaker

Network

WiFi  802.11b/g/n

Ethernet

10m/100m (RJ45)
