PO007

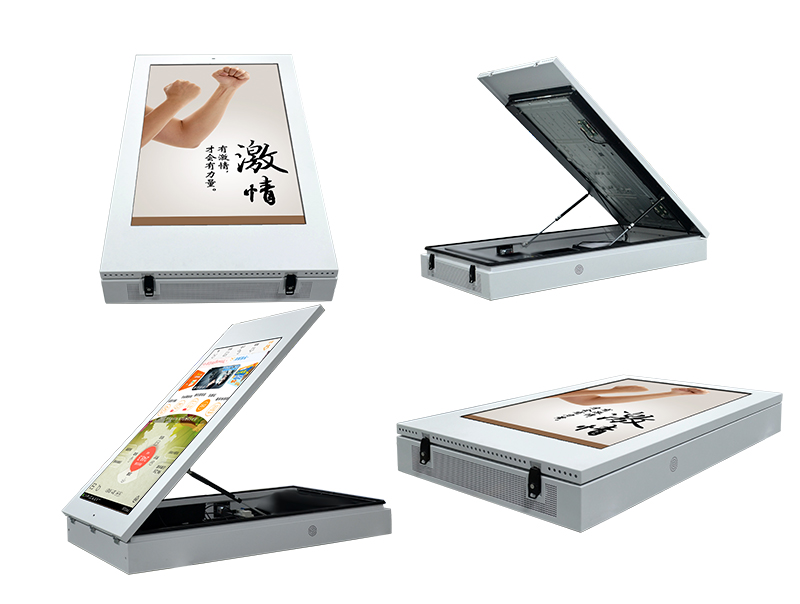

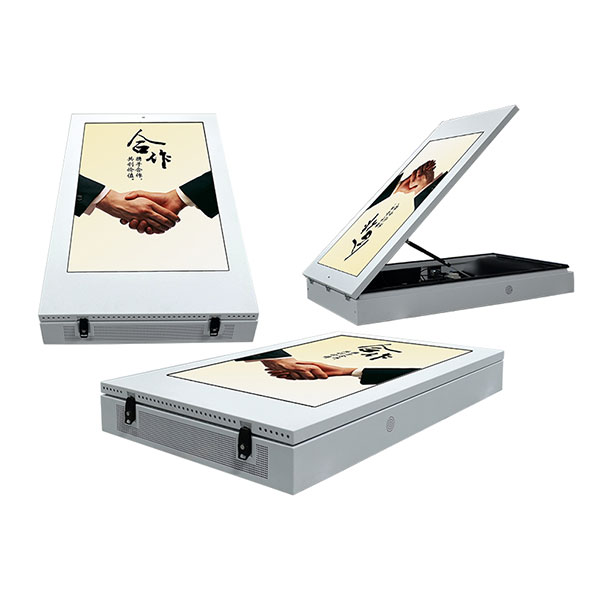

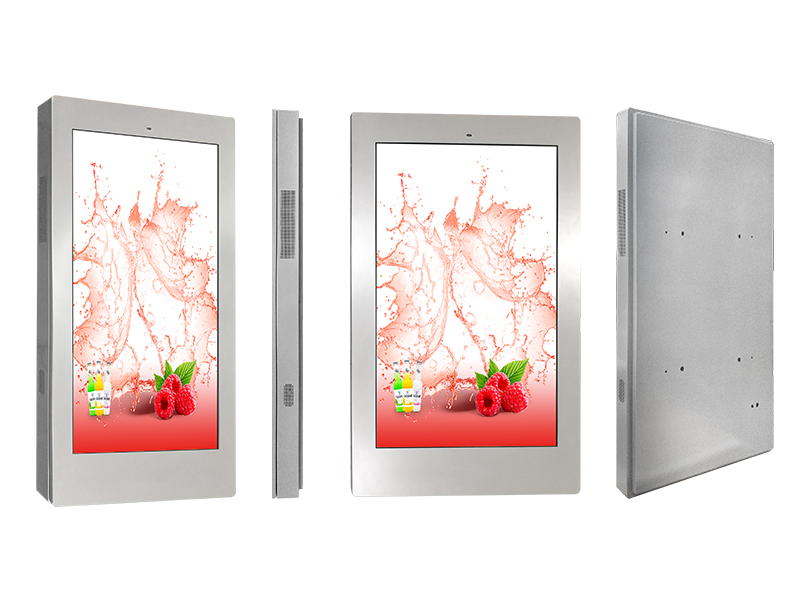

 Wall mount outdoor kiosk fan cooling















Kiosk parts Brand&Size Detail Discription
Kiosk computer   Industrial Motherboard Model: H61
CPU: Intel I3,3.3Ghz
RAM:DDRIII 4GB
Hard Disk:128g ssd
Integrated Net Card, Sound Card, Graphic Card
2 RS-232 Ports,6 USB Ports, 1 VGA,1 10/100M Net Port
US standard power supply
Monitor  43"/47“/55”/65“/75”/82“   high brightness     LCD               Industrial display TFT LCD monitor
Brand: LG, SAMSUNG or Innolux monitor
Brightness: 1500cd/m2
Contrast: 800:1
Max. Resolution: 1920x1080
Surface Hardness: Mohs' hardness rating of 7
Force<100G; Response Time: less than 10ms

Touh Screen 43"/47”/55“/65”/75“ /82” Touch foil Vandal-proof 10 points touch foil
Material: Heat tempered glass with thickness 6mm
Resolution: 4096*4096
Deviation of error: <2mm
Light Transmittance:  92%                                                                                                    Surface Hardness:  7 Mohs scale
Lifetime:50,000,000 times at one single location
Response time: less than 16 ms
Touch activation force: 10~100g
Fan cooling   Smart temperature control fans
Wifi   Yes.
Cabinet   Durable steel enclosure (different colors for option)
Built-in power control panel, and hi-fi speakers.
Two cooling fans for computer board and main body separately
RJ45/RJ11 interface
Large access doors with tubular locks/keys

Operation system   Windows 10  trial version,All hardware driver available
Packing   Bubble Foam, Carton, EPE foam,Sturdy wooden case
